For the sake of our book auction, this set of drawings for La Renommée is provided as an example of the detail provided by ANCRE monographs. For each monograph, the number of booklet pages and number of drawing sheets will be listed in the auction itme. You can scale your expectations for a particular vessel by comparing it to the 110 pages and 32 sheets provided for La Renommée (not all 32 sheets are shown in the image gallery).
- Schematic Elevation
- Horizontal Sections
- Vertical Cross Sections
- Elevation View of the Hull Framing
- Plan View of the Hull and Lower Deck
- Ceiling of the Hold
- Hull Plan (Framing and Planking)
- Gun-Deck Plan
- Forecastle and Quarterdeck Plans

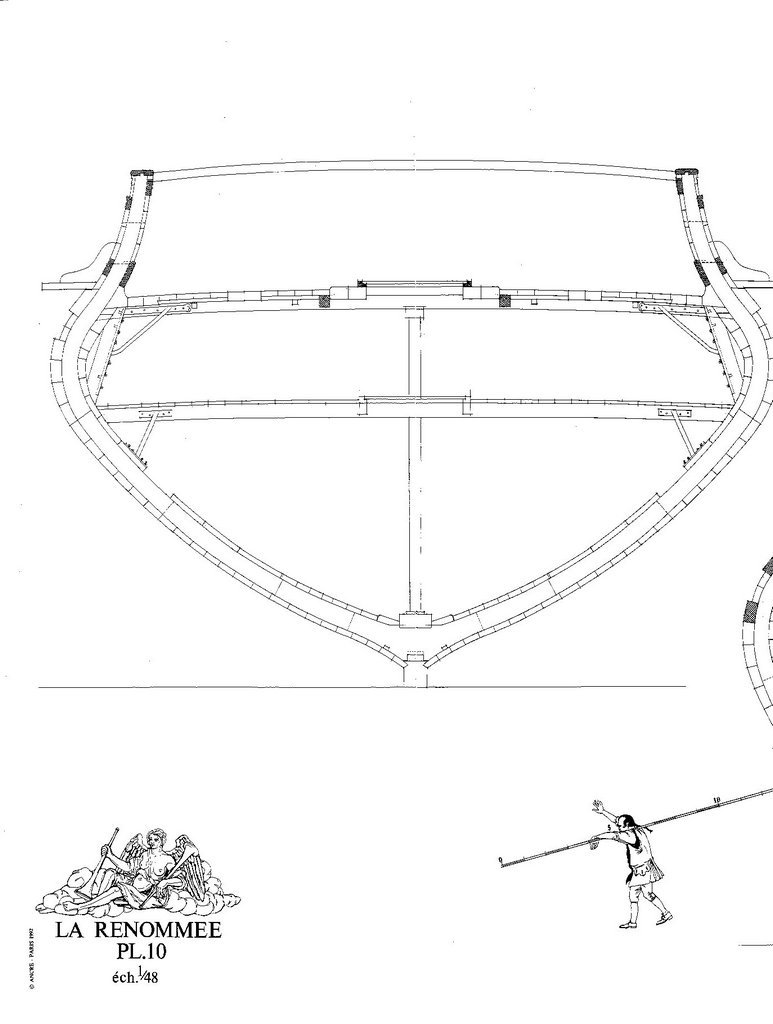

- Cross-sections
- Lengthwise Section
- Structural Elements
- Construction of the Stem
- Construction of the Stern
- Draughts of the Frames
- Draughts of the Frames
- Draughts of the Frames

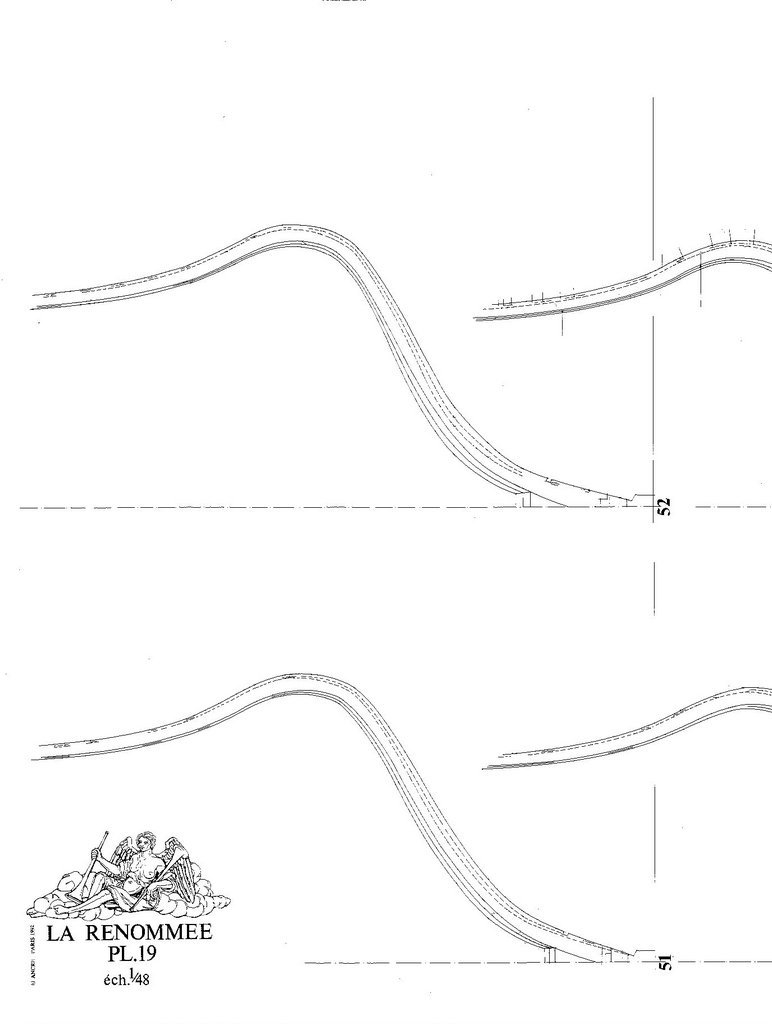

- Draughts of the Frames
- Draughts of the Frames (19 prime – Accommodations in the Hold)
- Accommodations on the Lower Deck
- Gundeck Layout
- Construction of the Forecastle and Quarterdeck
- Cross-Sections

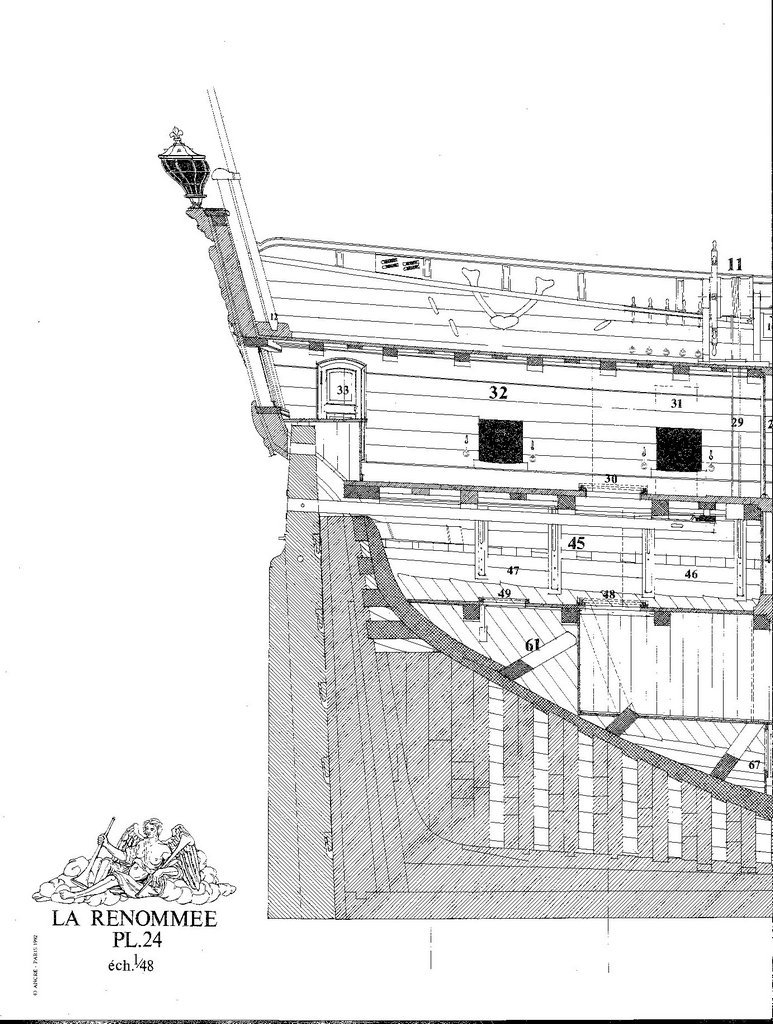

- Lengthwise Section
- Hull Elevation

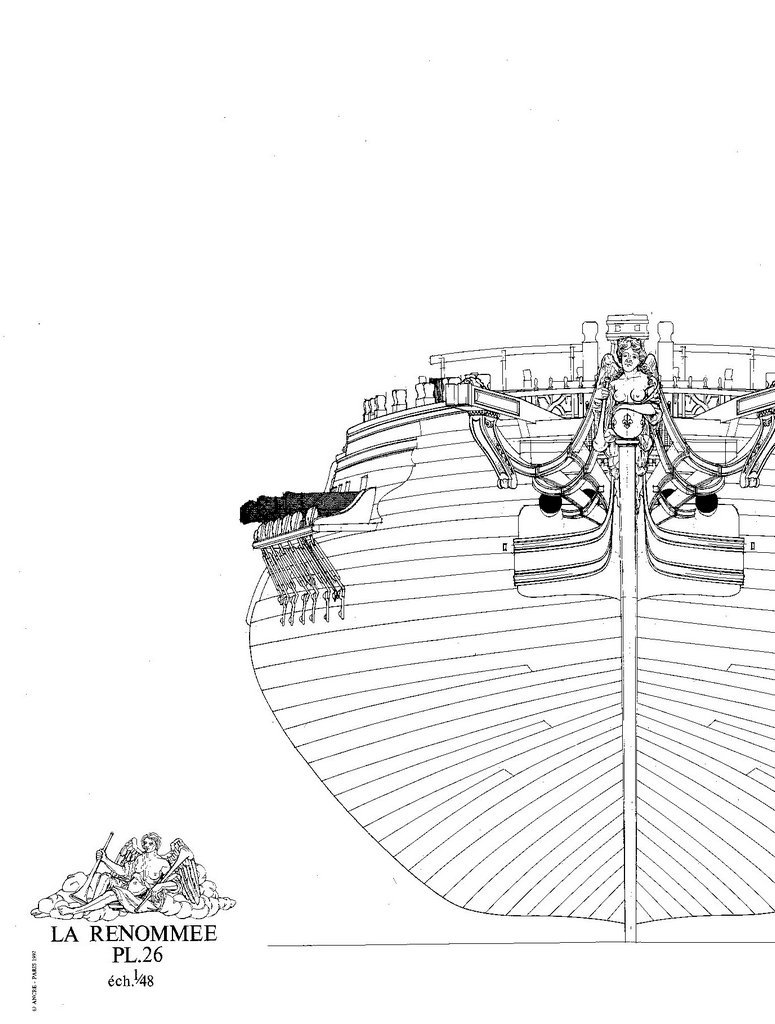

- Head and Stern Views

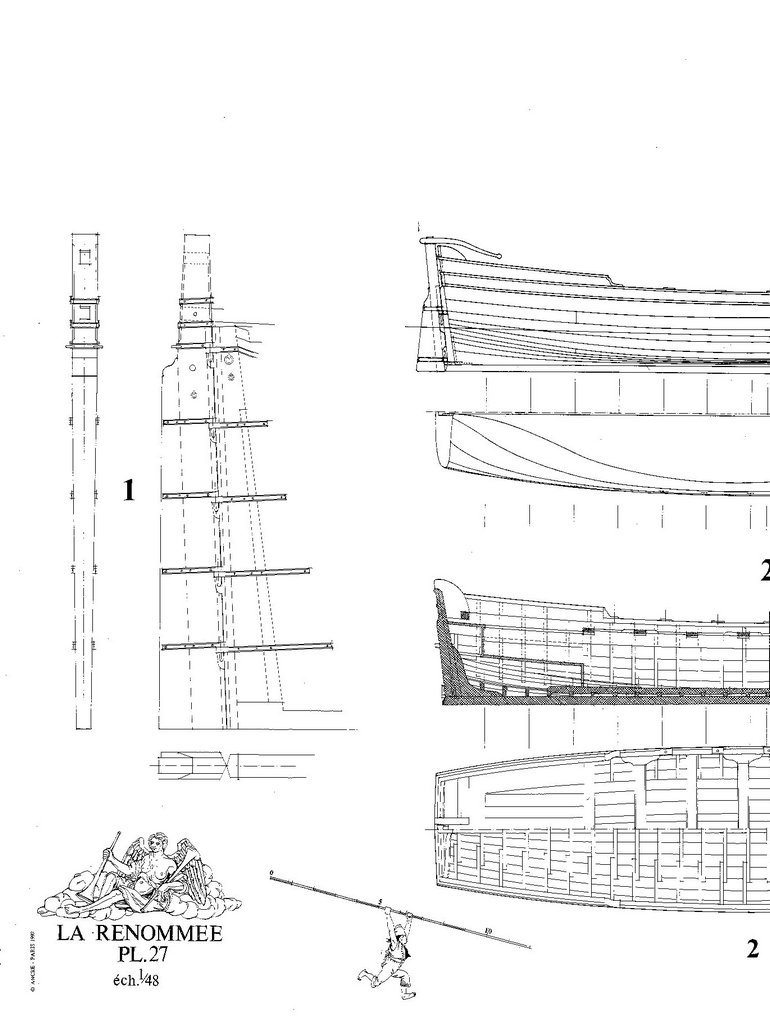

- Fittings

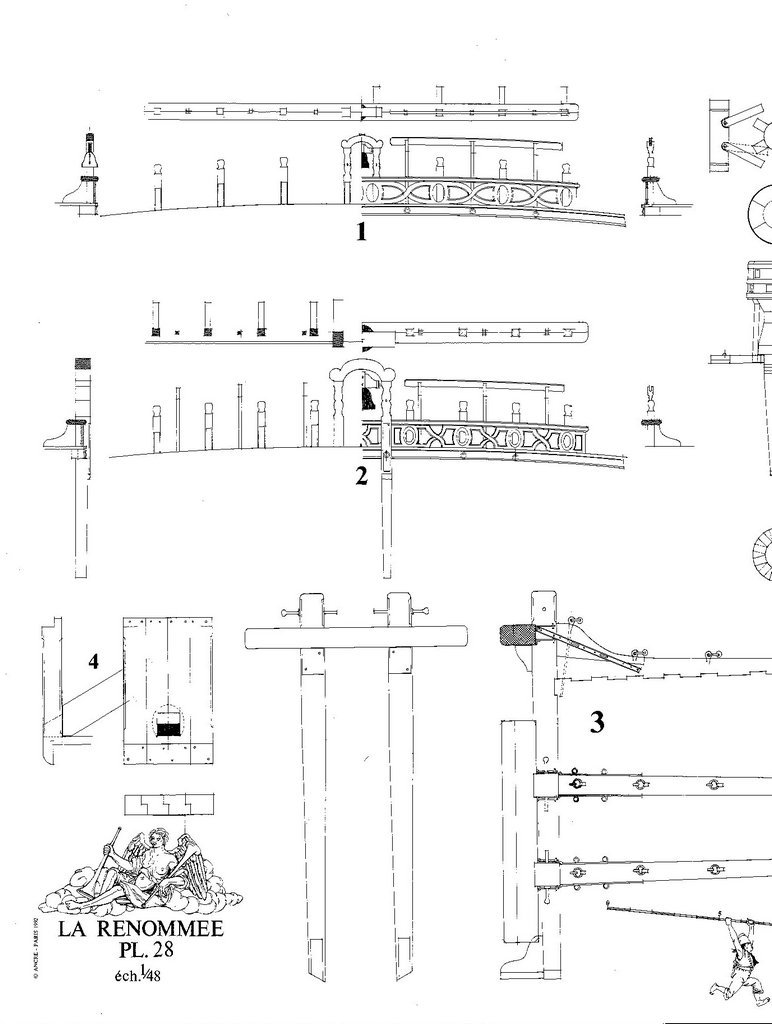

- Fittings

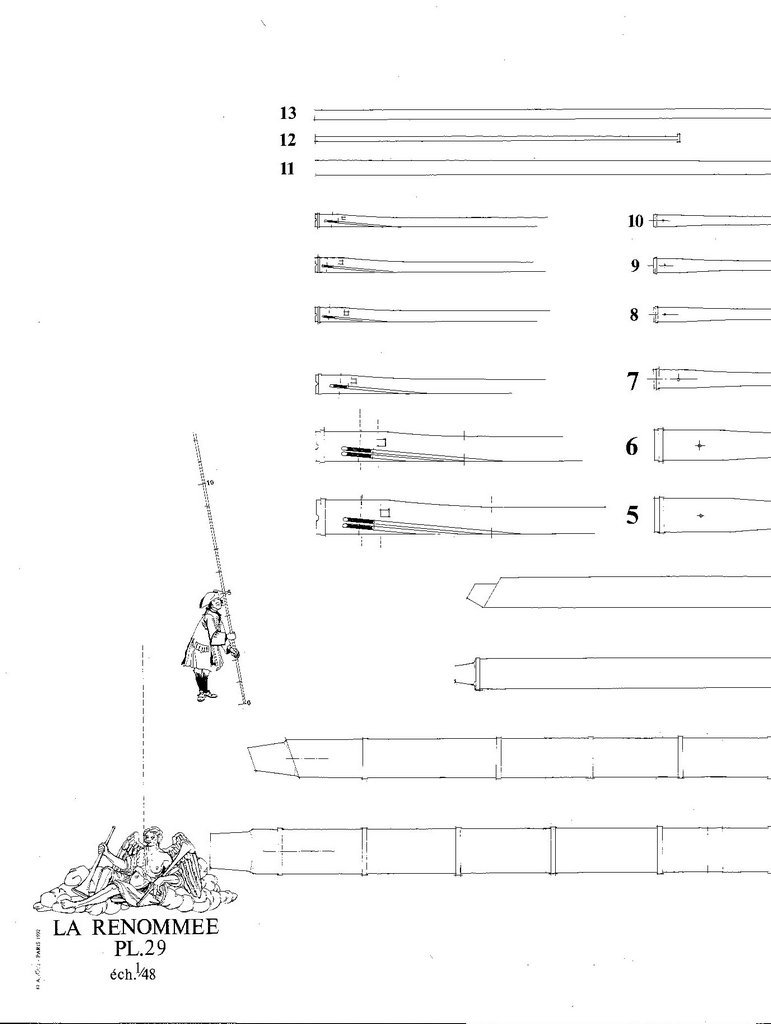

- Spars
- Mast Fittings

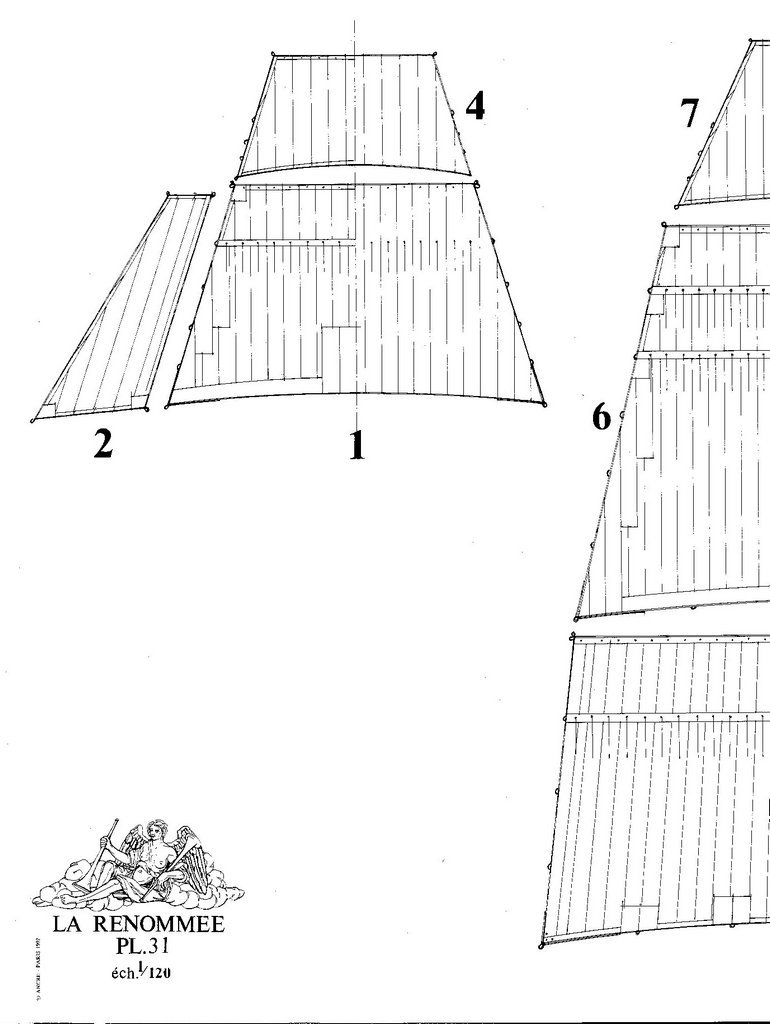

- Suit of Sails

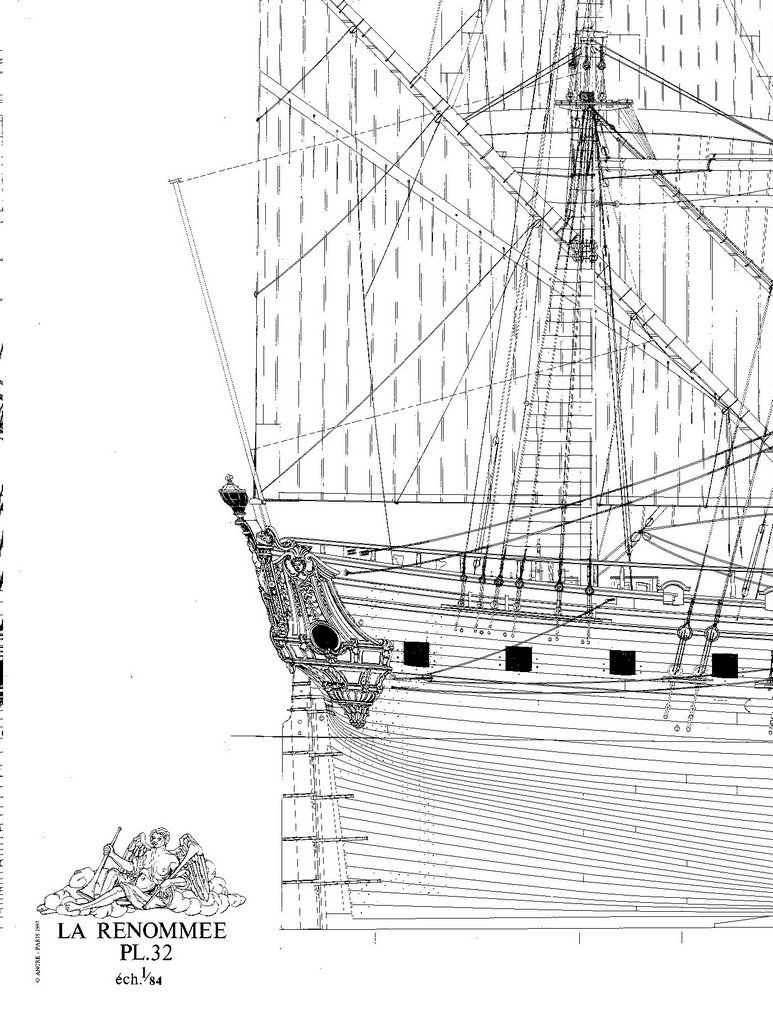

- Under Sail
